Steel Coil Pattern Coating Line

Pattern coating steel coil also called printed steel coil, is prepared by being coated with a layer of paint and baked pattern is printed out using the gravure technologies, then a layer of clear lacquer is coated and after being baked again, color-coated printed steel coil is obtained. Precisely, GEIT steel coil pattern coating equipment just a equipment with high speed of Max60m/min for single color printing(Max40m/min for double and there colors printing)

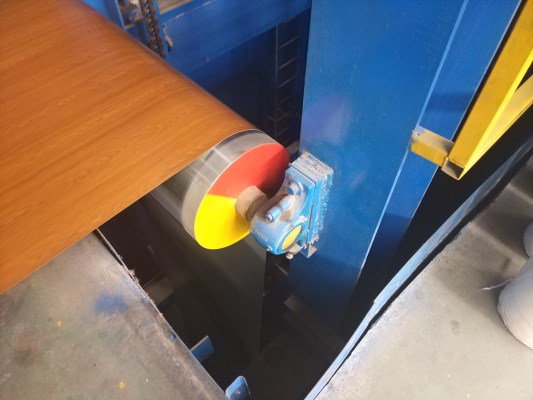

steel coil printed pattern line



Materials and specification:

Materials GI, GL, Alu coil, AZ, EG,CR
Thickness 0.15mm-1.6mm
Flatness <5mm/1000mm
Width 600mm-1500mm
Coil ID 508mm, 610mm
Layers of the coating 2/2(2 layers of top coating/2 layers of bottom coating);

2/1(2 layers of the top coating, 1 layer of bottom coating);

Form Gravure transfer printing
pattern According to customers’ requests
Paint PE, HDP, SMP, HPC, PVDM
Thickness of dry film of printing ink 1-3μm

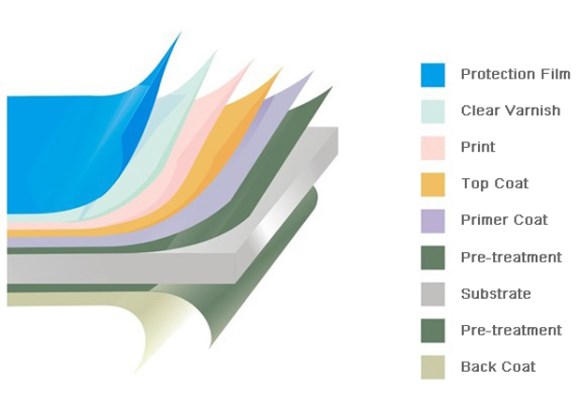

Coating Structure:



Pattern varieties and application:

It mainly applied to decoration for interior and exterior walls and indoor items. and there are various of patterns for customers to choose: multilayer, parallax and 3D effect, such as wood, marble, camouflage, fabric, leather etc.
